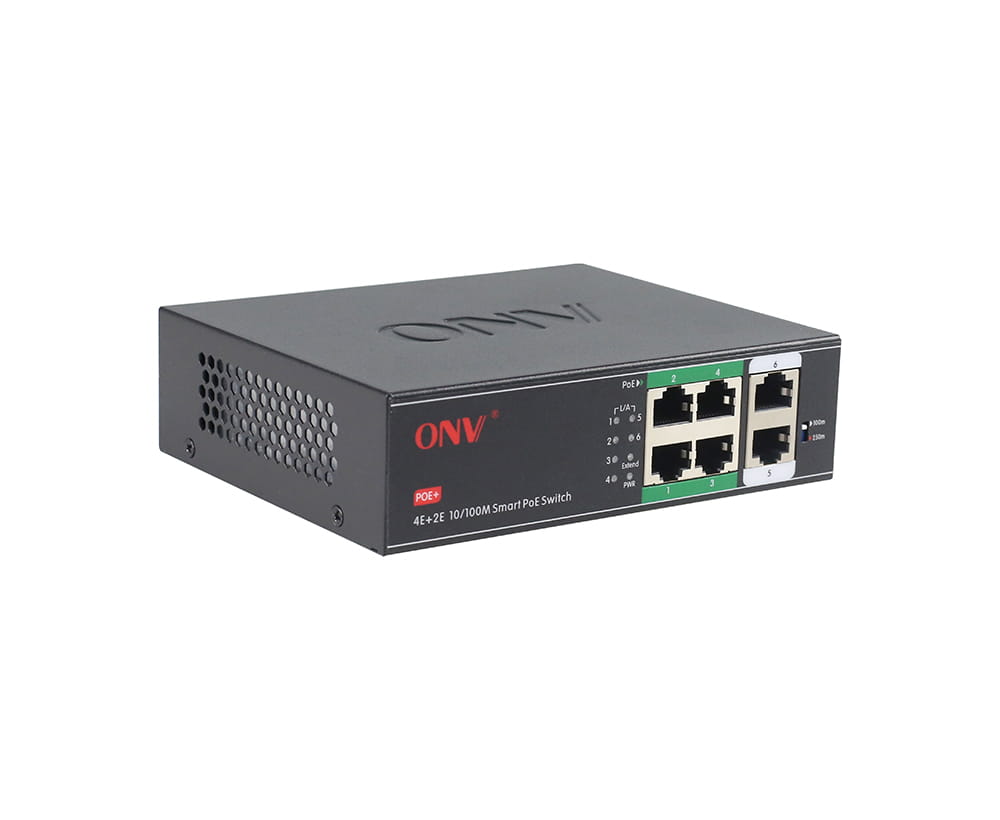

ONV-H1064PL 6-Port Unmanaged PoE Switch | 4-Port PoE+ with 250m Long-Range Transmission

Overview

The ONV-H1064PL is a high-performance, unmanaged 6-port PoE switch engineered by ONV to deliver both power and data over a single network cable. Featuring 4 x 10/100Mbps PoE ports and 2 x 10/100Mbps uplink ports, this switch is the ideal solution for small to medium-sized businesses, hotels, campuses, and surveillance systems requiring a cost-effective and reliable network infrastructure.

With a total PoE power budget of 65W and support for IEEE 802.3af/at standards, the ONV-H1064PL provides up to 30W per port to power devices such as IP cameras, wireless APs, VoIP phones, and video access control intercoms. Its plug-and-play design requires zero configuration, making deployment quick and hassle-free.

Key Features

250-Meter Long-Range Transmission

Equipped with a dedicated functional switch, the ONV-H1064PL enables 10Mbps transmission up to 250 meters on ports 1–4. This feature is perfect for large-scale surveillance and monitoring applications where devices are located far from the switch, eliminating the need for additional extenders or repeaters.

Video Surveillance Mode

When the long-range mode is activated, ports 1–4 are isolated from each other while remaining interoperable with ports 5–6. This prevents DHCP conflicts, optimizes port cache utilization, and reduces broadcast storms—critical for stable video streaming in security networks.

Smart PoE Power Management

• Auto-detection of IEEE 802.3af/at powered devices; safely powers PoE equipment while protecting non-PoE devices

• Port priority system ensures critical devices receive power first when the budget is limited

• Total PoE budget: 65W | Per-port max: 30W

Robust & Reliable Design

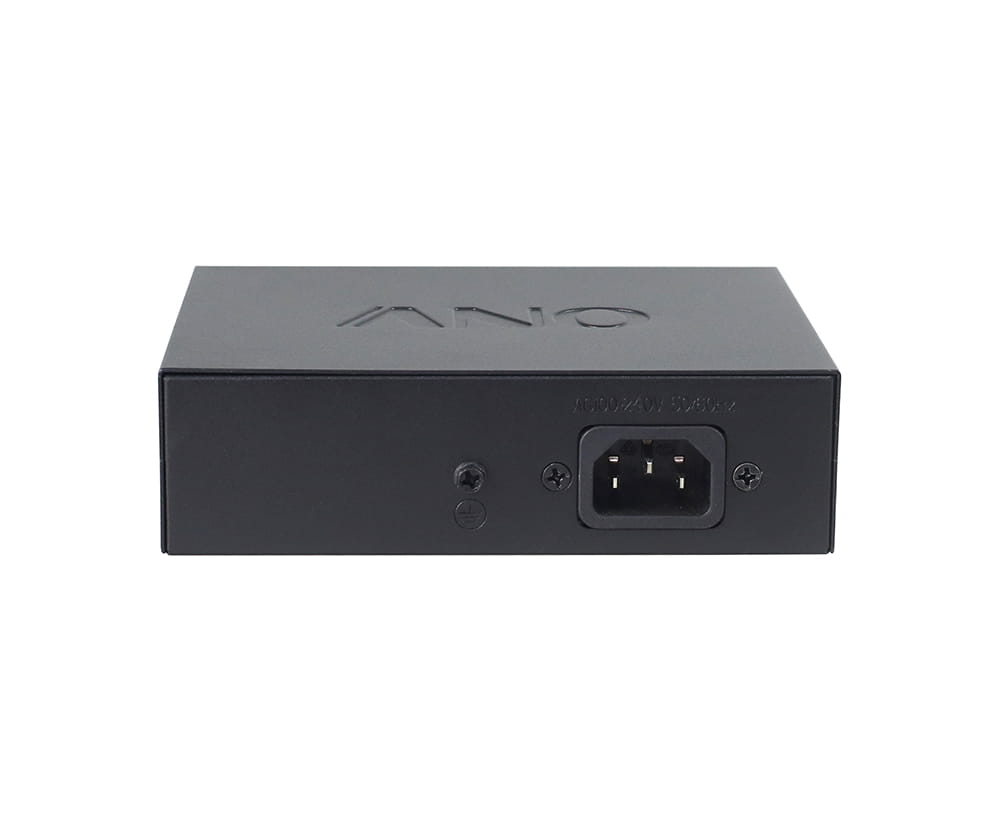

• Built-in power supply with AC100–240V wide voltage input

• Fanless, silent operation with galvanized steel casing for excellent heat dissipation

• 4KV 8/20us lightning protection and IP30 rating for durability in demanding environments

• Compliant with CCC, CE, FCC, and RoHS standards

Easy Deployment & Monitoring

• Unmanaged, plug-and-play—no configuration required

• LED indicators for power (PWR), link/activity (L/A), and PoE status for at-a-glance monitoring



  Package Contents

  • 1 × ONV-H1064PL 6-Port PoE Switch

  • 1 × AC Power Cable

  • 1 × User Guide

  • 1 × Warranty Card

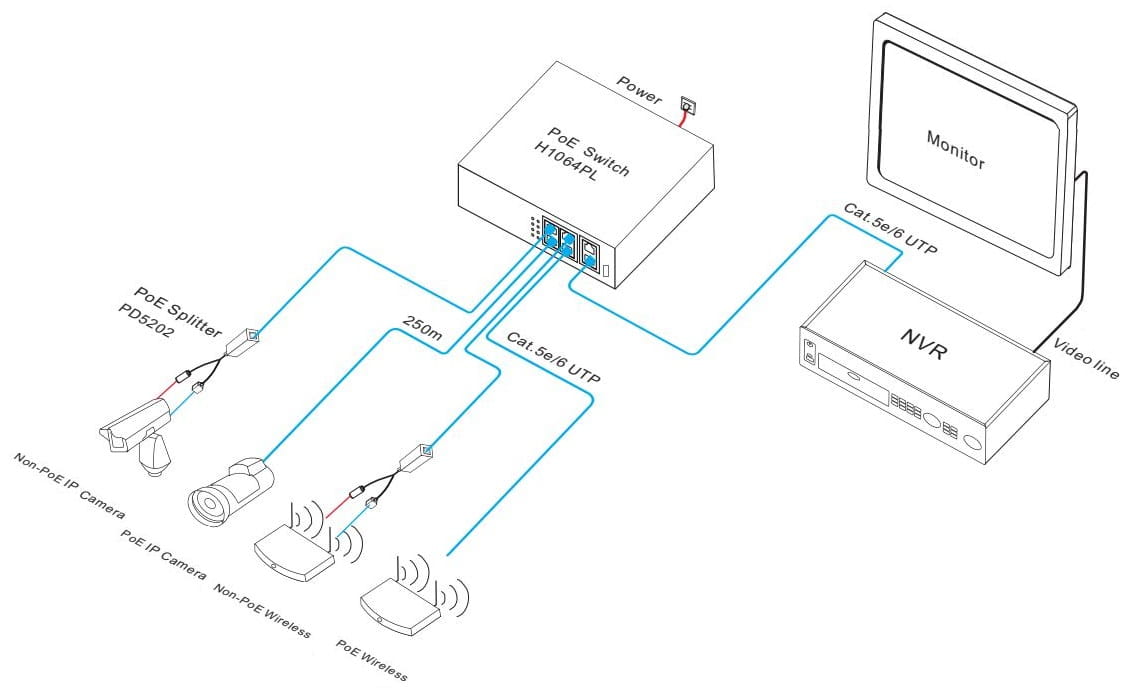

  Ideal Applications

  • Security & Surveillance: IP camera networks requiring long-distance cabling

  • Wireless Coverage: Deploying Wi-Fi access points in offices, hotels, and campuses

  • VoIP & Communication: Powering IP phones and video intercom systems

  • Small & Medium Enterprises: Cost-effective networking for offices and retail spaces
