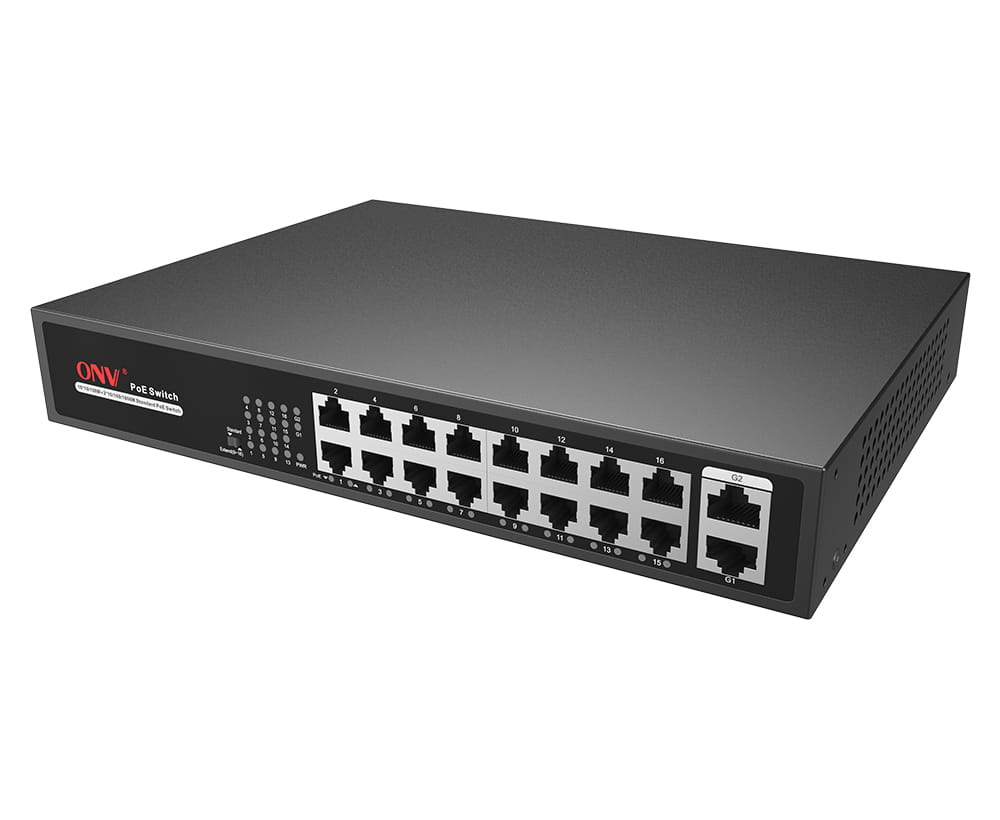

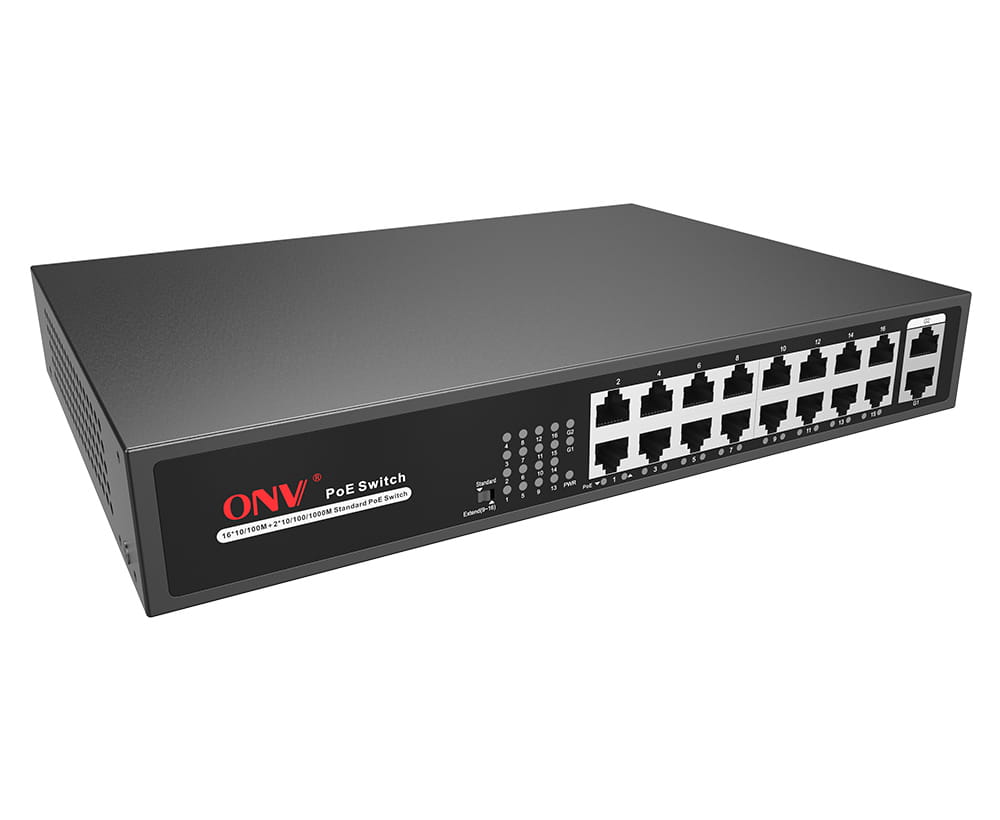

ONV-H1016PL 18-Port Gigabit Uplink Unmanaged PoE Switch (16 PoE + 2 Uplink)
ONV PoE Switch, ONV-H1016PL, 18 Port PoE Switch, PoE Switch Bangladesh, 250m PoE Switch, Gigabit PoE Switch, Unmanaged PoE Switch, CCTV PoE Switch, Network Switch Bangladesh, IP Camera Switch, ONV Switch Price Bangladesh, Long Distance PoE Switch, Logic Gate Electronics
ONV-H1016PL Price in Bangladesh — বাংলাদেশে CCTV ক্যামেরা, Wireless AP, এবং IP নেটওয়ার্ক স্থাপনের জন্য সবচেয়ে সাশ্রয়ী ও নির্ভরযোগ্য সমাধান। The ONV-H1016PL 18-Port Gigabit Uplink Unmanaged PoE Switch features 16×10/100M PoE ports and 2×Gigabit uplink RJ45 ports, supporting IEEE 802.3af/at standard with up to 30W per port and 250W total PoE power. With its unique 250-meter long-distance transmission mode, this switch is perfect for large premises, warehouses, hotels, campuses, and commercial buildings across Bangladesh.
Key Features
- ✅ 16 PoE Ports (10/100M) — Powers IP cameras, APs, VoIP phones via network cable
- ✅ 2 Gigabit Uplink Ports — 10/100/1000M RJ45 for high-speed backbone connection
- ✅ 250m Long Distance Mode — Port 9–16 supports 10M/250m extended transmission
- ✅ 250W Built-in Power Supply — Max 30W per PoE port, stable long-term output
- ✅ IEEE 802.3af/at Standard — Safe for all standard PoE devices
- ✅ Plug & Play — No configuration needed, instant setup
- ✅ 14.8Gbps Non-blocking Switching — Wire-speed forwarding for smooth performance
- ✅ 4KV Lightning Protection — Protects network equipment from power surges
- ✅ Fanless Metal Design — Silent operation, durable galvanized steel casing
- ✅ 1U Rack Mountable — Fits standard 19-inch server rack
Technical Specifications
| Specification | Details |
|---|---|
| Model | ONV-H1016PL |
| Total Ports | 18 Ports (16 PoE + 2 Gigabit Uplink) |
| PoE Ports | 16 × 10/100Base-TX RJ45 (Port 1–16) |
| Uplink Ports | 2 × 10/100/1000Base-T RJ45 (Port 17–18) |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Max Power Per Port | 30W |
| Total PoE Power | 250W (Max) |
| Long Distance Mode | Port 9–16: 10M / 250 meters (switch enabled) |
| Twisted Pair Support | 10BASE-T: Cat3/4/5 UTP (≤250m) | 100BASE-TX: Cat5+ (≤100m) | 1000BASE-T: Cat5e+ (≤100m) |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 14.8 Gbps (Non-blocking) |
| Forwarding Rate | 5.36 Mpps @ 64 byte |
| MAC Address Table | 16K |
| Buffer Memory | 4MB |
| Jumbo Frame | 9.6K |
| Network Protocol | IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x |
| Power Supply | Built-in AC 100–240V, 50–60Hz |
| Power Consumption | Standby: <15W | Full Load: <240W |
| Lightning Protection | 4KV 8/20μs (Port Level) |
| LED Indicators | PWR (Power), Link (Network), PoE (PoE Status) |
| Operating Temperature | -20°C to +55°C | Humidity: 5%–90% RH (Non-condensing) |
| Storage Temperature | -40°C to +75°C | Humidity: 5%–95% RH |
| Dimensions (L×W×H) | 270 × 181 × 44.5 mm |
| Weight | Net: <1.7kg | Gross: <2.2kg |
| Installation | Desktop | Wall-mounted | 1U 19-inch Rack |
| Casing Material | Galvanized Steel (Fanless) |
| Certifications | CCC, CE, FCC Part 15 Class B, RoHS |
| Warranty | 1 Year (Lifelong Maintenance) |
Why Choose ONV-H1016PL PoE Switch in Bangladesh?
The ONV-H1016PL is purpose-built for CCTV surveillance and networking projects in Bangladesh. Unlike basic switches, this model includes a dedicated 250-meter long-distance transmission mode — allowing you to power and connect IP cameras far beyond the standard 100-meter Ethernet limit. This makes it ideal for large buildings, factory floors, parking areas, and campus environments where running extra power lines would be costly.
The switch’s built-in 250W power supply with high redundancy design ensures stable, long-term PoE output without voltage fluctuation. The PoE port priority system automatically supplies power to higher-priority ports first when the total power budget is approached — protecting your critical cameras and devices from downtime. With a fanless metal casing, the ONV-H1016PL operates silently and stays cool even in demanding environments.
Compatible Devices
The ONV-H1016PL PoE switch can power and connect a wide range of network devices through a single Ethernet cable:
- 📷 IP CCTV Cameras (Hikvision, Dahua, HiLook, EZVIZ)
- 📡 Wireless Access Points (APs)
- 📞 VoIP IP Phones
- 🔔 Video Door Phones & Access Control Intercoms
- 💡 PoE LED Lighting Systems
Easy Plug & Play Setup
The ONV-H1016PL is completely unmanaged — simply plug in your devices and the switch automatically detects and powers standard IEEE 802.3af/at PoE equipment. No software, no configuration, no IT expertise required. The clear LED indicators (PWR, Link, PoE) make it easy to monitor device status at a glance. For rack installation, the included mounting kit fits any standard 1U 19-inch server cabinet.
Complete Your CCTV System
Pair the ONV-H1016PL PoE switch with IP cameras from our store to build a complete surveillance system. Browse our range of Hikvision, Dahua & HiLook IP cameras at Logic Gate Electronics to find the right cameras for your project. All cameras are fully compatible with the ONV-H1016PL via standard PoE connection.
Perfect For
- 🏨 Hotels & Resorts
- 🏫 Schools, Colleges & Universities
- 🏭 Factories & Industrial Facilities
- 🏢 Office Buildings & Corporate Networks
- 🏪 Shopping Malls & Retail Stores
- 🅿️ Large Parking Areas & Warehouses
ONV-H1016PL Price in Bangladesh — Best Deal at Logic Gate
Looking for the best ONV-H1016PL price in Bangladesh? Logic Gate Electronics is one of the most trusted networking and surveillance equipment suppliers in Dhaka. We offer the genuine ONV-H1016PL PoE switch at the most competitive price with full warranty support. Whether you need a single unit for a small office or bulk quantity for a large CCTV installation project, we have you covered with fast delivery across all districts of Bangladesh.
Customers searching for ONV-H1016PL price in Bangladesh choose Logic Gate Electronics for our reliable after-sales support, technical guidance, and genuine product guarantee. The ONV-H1016PL is the most cost-effective 18-port PoE switch available in Bangladesh for professional CCTV and network installations.
ONV-H1016PL PoE Switch — Why It’s Popular in Bangladesh
The ONV-H1016PL price in Bangladesh makes it the most popular choice for system integrators, CCTV installers, and IT professionals across Dhaka, Chittagong, Sylhet, and Rajshahi. Many professionals specifically look for the ONV-H1016PL price in Bangladesh because this switch offers enterprise-grade features at a small-business price. With 16 PoE ports, 250m long-distance mode, and built-in 250W power supply, the ONV-H1016PL handles even large multi-camera CCTV installations with ease. If you are planning a new CCTV or network project, check the latest ONV-H1016PL price in Bangladesh at Logic Gate Electronics before making your decision.
Get the best ONV-H1016PL price in Bangladesh from Logic Gate Electronics. We supply 100% genuine ONV products with full warranty, expert installation support, and fast delivery across Dhaka and all over Bangladesh.
